Product Details:
Category：Vacuum Circuit Breaker

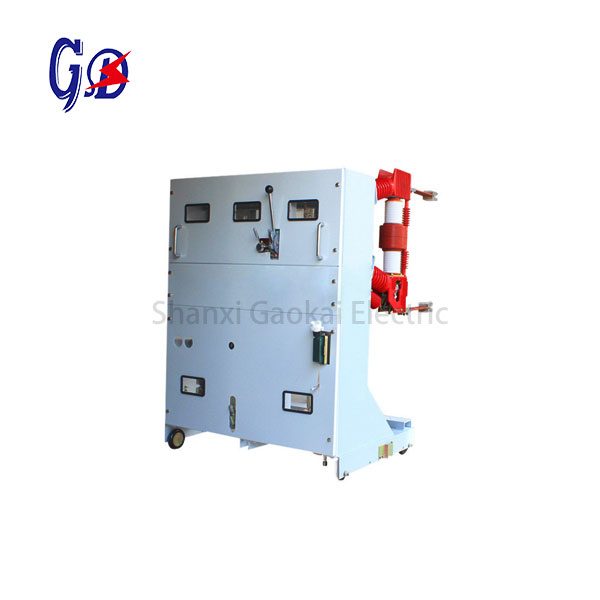

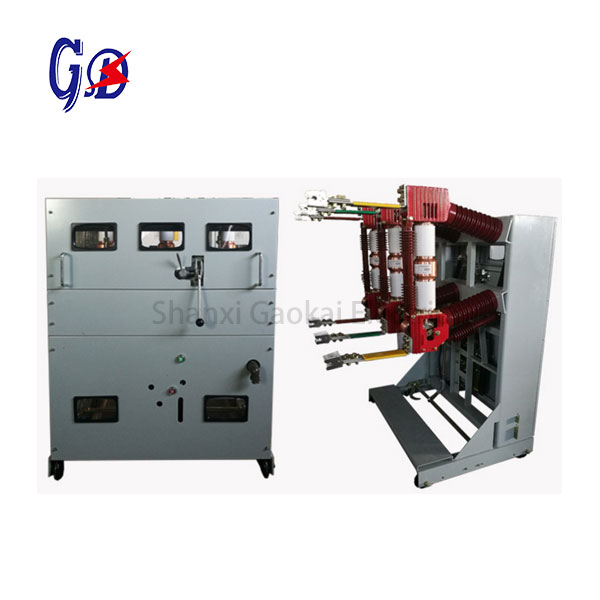

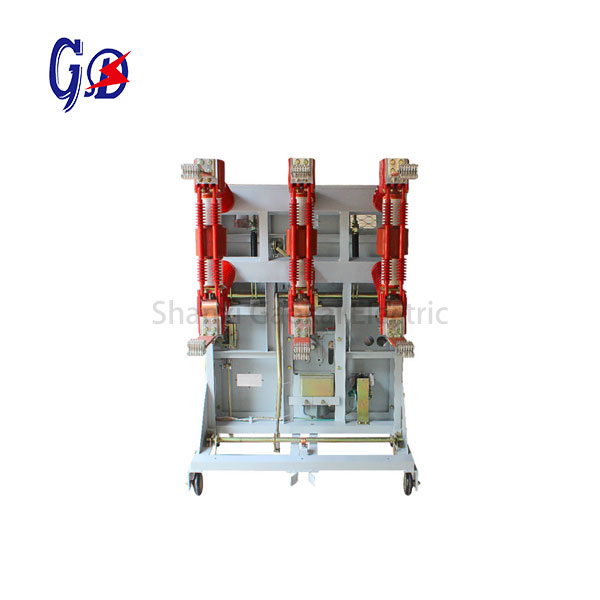

Name：Indoor high voltage circuit breaker
Model：ZN23-40.5
Packing：Plastic bag & Wooden case or as requested
Delivery & Payment Terms:
Shipping time： Usually 30 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment Condition:
– Ambient temperature:-15℃~+40℃
– Altitude: ≤1000m
– Daily average relative humidity: ≤95%; Monthly average relative humidity: ≤90%
– Daily average saturated vapor pressure: ≤2.2KPa; Monthly average value : ≤1.8KPa
– Earthquake intensity: ≤8 degree
– No fire, explosion, severe vibration, chemical corrosion and serious pollution
Technical Data
| 1 | Rated voltage | KV | 40.5 | |
| 2 | Lightning impulse withstand voltage (peak) | KV | 185 | |
| 3 | 1min power frequency withstand voltage | KV | 95 | |
| 4 | Rated Frequency | HZ | 50 | |
| 5 | Rated current | A | 1250,1600, 2000 | |
| 6 | Rated short-circuit making current | KA | 25 | 31.5 |
| 7 | Rated short-circuit withstand current | KA | 25 | 31.5 |
| 8 | Rated peak withstand current | KA | 63 | 80 |
| 9 | Rated short-circuit continued time | s | 4 | |
| 10 | Rated short-circuit making time | ms | ≤90 | |
| 11 | Rated short-circuit ON-OFF current | KA | 80 | |
| 12 | Rated operating sequence | O-0.3s-CO-180s-CO | ||
| 13 | Closing Time | ms | 50~85 | |
| 14 | Opening Time | ms | 40~85 | |
| 15 | Rated current making current breaking times | Times | 20 | |
| 16 | Mechanical life time | Times | 10000 | |
| 17 | Rated capacitor making current | A | 630 | |
| 18 | Energy storage motor rated power | W | 275 | |
| 19 | Energy storage motor rated voltage | V | AC/DC220 110 | |
| 20 | Storage time | S | ≤15 | |
| 21 | Closing and opening solenoid rated voltage | V | ≈220, 110 | |
| 22 | Loss of pressure tripping device rated voltage | A | ≈220, 100 | |
| 23 | Over current tripping device rated current | A | 5 | |
| 24 | Auxiliary switch rated voltage current | A | 10 | |
| 25 | Contactor opening distance | mm | 25±2 | |
| 26 | Contactor contact trip | mm | 6±2 | |
| 27 | Contact closing bounce time | ms | ≤3 | |
