Product Details:
Category：High voltage Fuse
Name：Current Limit Fuse, Fuse Link, Fuse Tube, Fuse wire

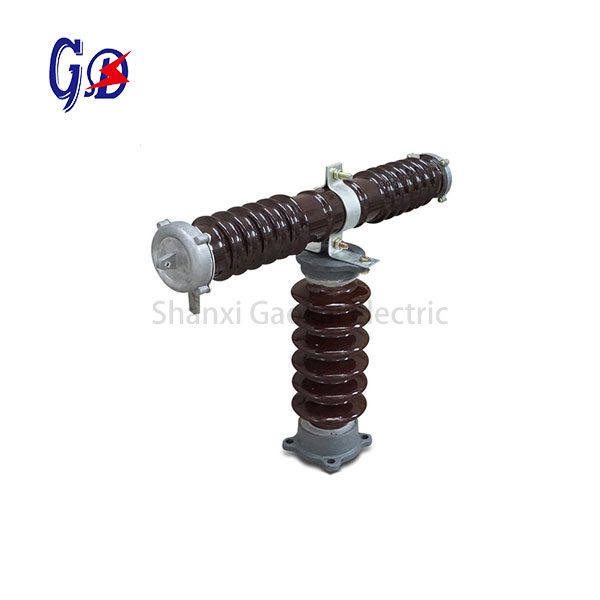

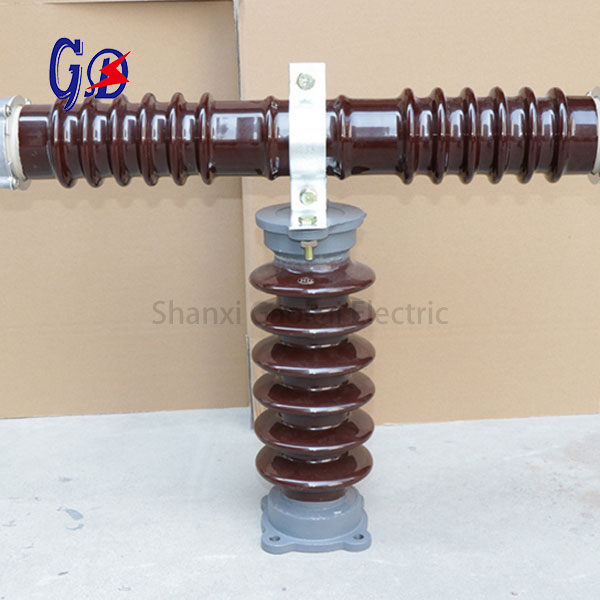

Model：RW(RXWO) series

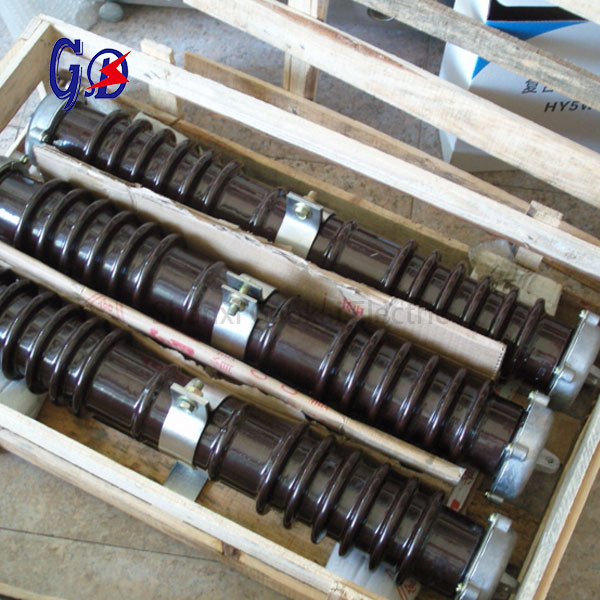

Packing：Plastic bag & Carton or as requested
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
MOQ：10 PCS
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment Conditions
– Ambient temperature: -40 ℃ ~ 40 ℃;
– The altitude does not exceed 1000m;
– The wind speed is not more than 35 m/s
– Earthquake intensity does not exceed 8 degrees;
– No fire or explosion site, no violent vibration, no electrochemical gas effect and seriously polluted air, salt-spray area
Specification
| Model | Rated voltage(kA) | Rated current (A) | Capacity of three-phase largest blanking (MVA) | Fuse current
(A) |
Max breaking current (kA) | Overvoltage
Multiple: ≤ |
Weight
(KG) |
Remark |
| RXWO-35/0.5 RXW10-35/0.5 | 35,40.5 | 0.2,0.5,1A | 1000 | 16 | 2.5 times | 23 | Voltage transformer
protection |
|
| RXWO-35/2 RXW10-35/2 | 2 | 200 | 14 | Power lines
protection |
||||
| RXWO-35/3 RXW10-35/3 | 3 | |||||||
| RXWO-35/5 RXW10-35/5 | 5 | |||||||
| RXWO-35/7 RXW10-35/7 | 7.5 | |||||||
| RXWO-35/10 RXW10-35/10 | 10 |

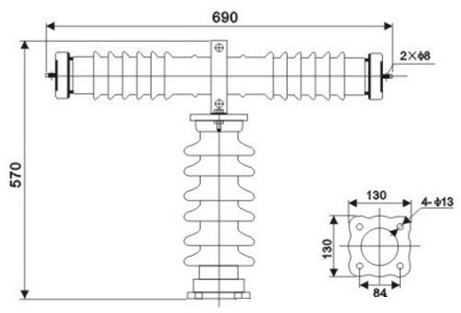

Outline dimension
