Product Details:
Category：Instrument Transformer

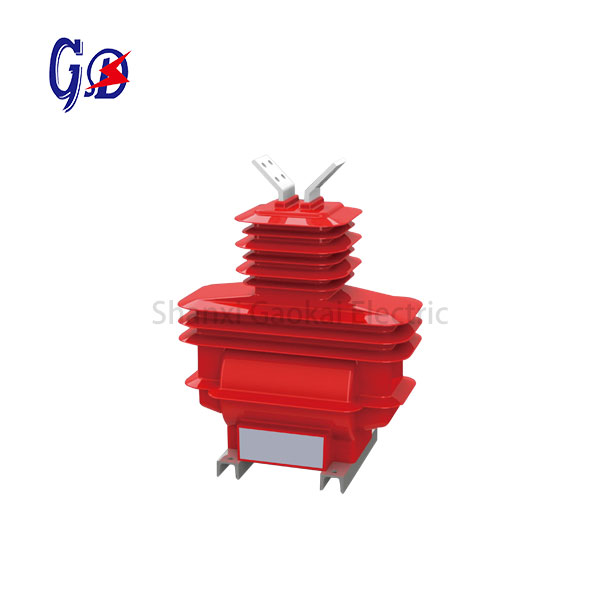

Name：Outdoor Current Transformer, Full-enclosed Post Structure
Epoxy Resin & Silicone Rubber Composite Insulation
Model：LZZW(F)-36
Packing：Plastic bag & Wooden case or as requested
Color：Grey, Red or as customized
Delivery & Payment Terms:
Shipping time：Usually 21 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Rated insulation level: 40.5/95/185kV
– Rated secondary current: 5A or 1A
– Rated voltage: 33kV, 35kV
– Power factor: COSФ=0.8(lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤1000m
| Rated primary current (A) | Accuracy classes
combination |
Rated secondary output (VA) | 1S short-time thermal current (kA) | Rated dynamic current (kA) | |||
| 0.2S | 0.2 | 0.5 | 10P | ||||
| 30-100 | 0.2/0.2
0.2/0.5 0.5/0.5 0.2/10P10 0.5/10P10 0.2S/0.5/10P10 |
15 | 30 | 30 | 50 | 150I1n | 375I1n |
| 150 | 31.5 | 80 | |||||
| 200 | 31.5 | 80 | |||||
| 300-500 | 80 | ||||||
| 600-800 | 30 | 40 | 50 | 80 | |||
| 1000-200 | 40 | 100 | |||||
Note: We can also manufacture the transformers with other specifications as the detailed request.

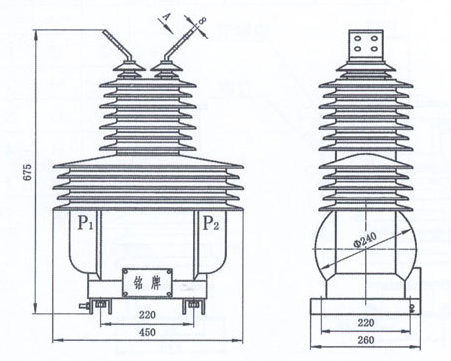

Outline Dimension
