Product Details:
Category：Instrument Transformer

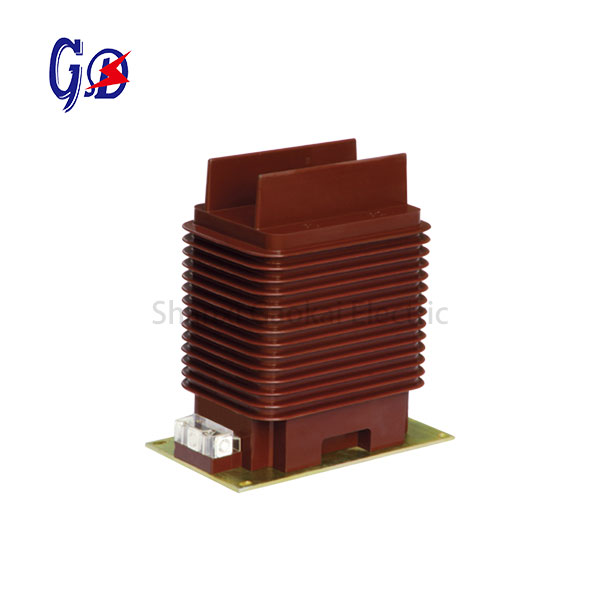

Name：24kV Indoor Current Transformer, Full-enclosed Structure
Model：LZZBJ9-24-180b/2, LZZBJ9-24-180b/4
Brand：OEM or our brand GK
Coil Structure：Toroidal
Material：Epoxy Resin Casting, Cooper
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Rated insulation level: 24/65/125kV
– Rated secondary current: 5A or 1A
– Power frequency withstand voltage: 17.5kV, 24kV
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤1000m
-Standard: IEC 60044-1, GB1208-2006
| Rated primary current (A) | Accuracy classes combination | Rated secondary output (VA) | 1s thermal current (kA) | Rated dynamic current (kA) | |||
| 0.2(s) | 0.5(s) | 10P10 | 10P15 | ||||
| 20,30,40,50,75,
100,150 |
0.2(s)/0.2
0.2(s)/0.5 0.2(s)/ 10P10 0.5(s)/ 10P10 0.2(s)/ 10P15 0.5(s)/ 10P15 |
10 | 15 | 15 | 15 | 150 I1n | 375 I1n |
| 200 | 31.5 | 80 | |||||
| 300,400,500 | 45 | 112.5 | |||||
| 600,800 | 15 | 15 | 20 | 63 | 130 | ||
| 1000,1200,1250 | 80 | 160 | |||||
| 1500, 2500 | 100 | 160 | |||||
Note: We can also manufacture the transformers with other specifications as the detailed request.

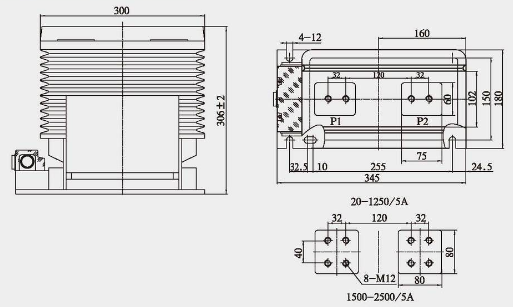

Outline Dimension
