Product Details:
Category：Instrument Transformer

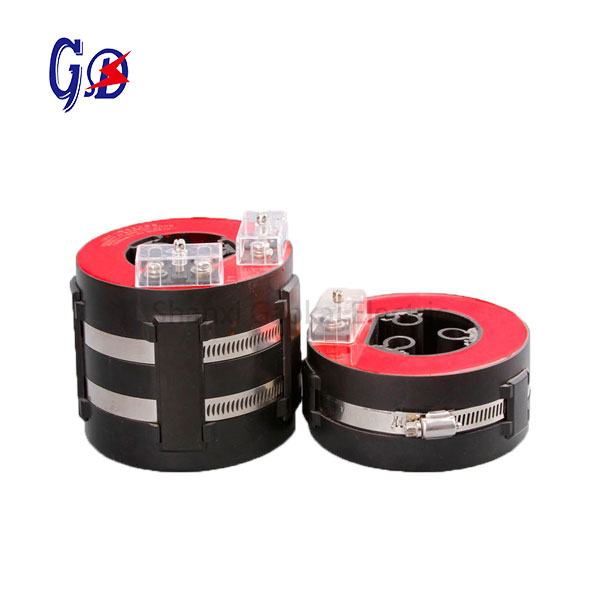

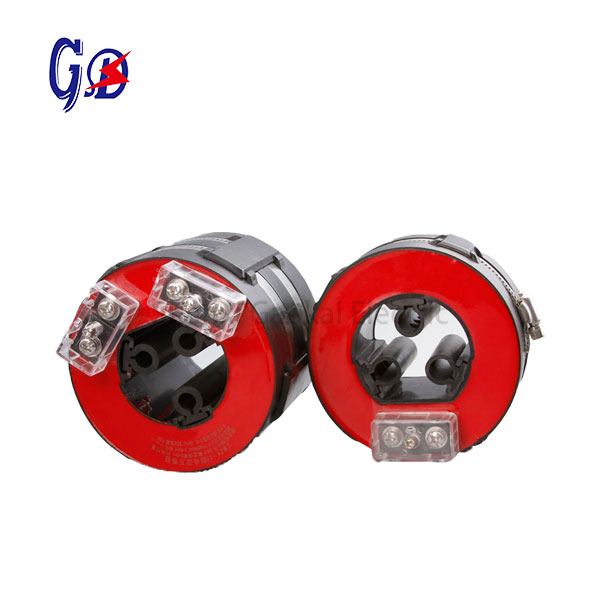

Name：Split core Current Transformer for RMU, C-GIS
Model：LMZK-10
Packing：Plastic bag & Wooden case or as requested
Installation：Indoor type
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Load Power factor: COSΦ=0.8(Lagging)
– Rated secondary current: 5A or 1A
– Power frequency withstand voltage: 10kV
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤1000m
-Standard: IEC 60044-1 (IEC 61869)
| Model | LMZK-11C | LMZK-11P | LMZK-11CP | |||||||
| Purpose | Measuring current transformer | Protection current transformer | Double winding current transformer | |||||||
| Rated primary current (A) | Accuracy class and
rated burden(VA) |
Accuracy class and
rated burden(VA) |
Accuracy class and rated burden(VA) | |||||||
| 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 | |
| 50 | 2.5 | |||||||||
| 75 | 2.5 | 1.5 | ||||||||
| 100 | 2.5 | 2.5 | ||||||||
| 150 | 2.5 | 1.5 | 3.75 | |||||||
| 205 | 2.5 | 5 | 2.5 | 5 | ||||||
| 300 | 2.5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 1.5 | |||
| 400 | 5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 2.5 | |||
| 500 | 5 | 5 | 2.5 | 3.75 | 7.5 | 2.5 | 2.5 | |||
| 600 | 5 | 5 | 2.5 | 5 | 10 | 2.5 | 2. | |||
Note: We can also manufacture the transformers with other specifications as the detailed request.

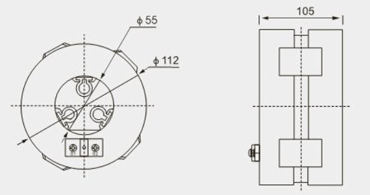

Outline Dimension
