Product Details:
Category：Instrument Transformer

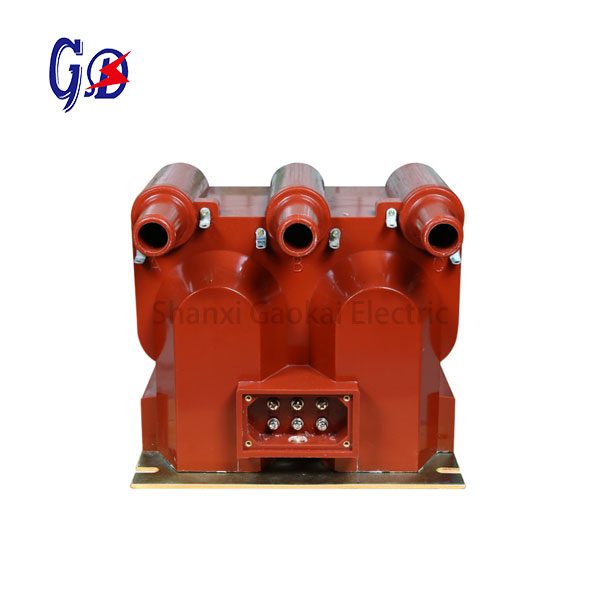

Name：6, 12kV C-GIS Voltage Transformer, Indoor Full-enclosed Post Structure
Model：JSZ12A-10R Brown or Red
Brand：OEM or our brand GK
Coil Structure：Toroidal
Material：Epoxy Resin Casting, Cooper
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤1000m
| Model | Rated voltage Ratio (kA) | Accuracy classes and
rated output (VA) |
Thermal limit output (VA) | Rated insulation level (KV) | |||||
| 0.2 | 0.5 | 1 | 3 | 0.2/0.5 | |||||
| JSZV12A-6R | 6/0.1/0.1 | 15 | 30 | 100 | 150 | 20/40 | 240 | 7.2/32/60 | |
| JSZV12A-10R | 10/0.1/0.1 | 15 | 30 | 100 | 150 | 20/40 | 300 | 12/42/75 | |
| 10/0.11/0.22 | 100 | 15 | 30 | 150 | 150 | 20/60 | 300 | ||
| 220 | / | 80 | 150 | 240 | 500 | ||||
Note: We can also manufacture the transformers with other specifications as the detailed request.
Outline Dimension
