Product Details:
Category：Outdoor Combined Transformer

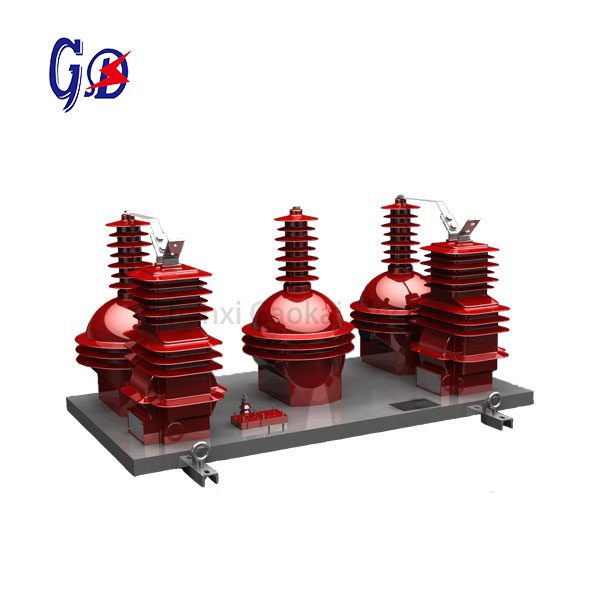

Name：35kV, 40.5kV High voltage Power Metering Unit
Model：JLSZY(F)-35 Three phase Metering Box
Packing：Plastic bag & Wooden case or as requested
Material：Epoxy Resin & Silicone Rubber composite insulation
Delivery & Payment Terms:
Shipping time：Usually 30 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment condition
– Ambient temperature: -25°C -+40°C
– Altitude: ≤4500m
– Wind pressure: ≤700Pa(equals to wind speed 34m/s)
– Relative humidity: daily average: ≤95%; monthly average: ≤90%
Voltage Transformer
| Rated voltage ratio (kV) | Accuracy classes combination | Accuracy classes and rated output (VA) COSФ=0.8 | Thermal limit output (VA) | Rated Insulation level(kV) | |
| 0.2 | 0.5 | ||||
| 35/0.1 | 0.2
0.5 |
30 | 60 | 3×350 | 40.5/95/185kV |
| 33/0.1 | |||||
Current Transformer
| Rated current ratio (A) | Accuracy classes combination | Accuracy class and rated output (VA)
COSФ=0.8 |
1S short-time thermal current (kA) | Rated dynamic current | Rated Insulation level (kV) | |
| 02S | 0.5 | |||||
| 5/5-75/5 | 0.2(S)
0.5 |
10 or 15 | 10 or 15 | 100I1n | 250I1n | 40.5/95/185kV |
| 100/5-200/5 | 150I1n | 375I1n | ||||
| 300/5 | 31.5 | 80 | ||||
| 400/5-600/5 | 63 | 130 | ||||
Note: Please email us if you need the combined transformers with other specifications.
