Product Details:
Category：Outdoor Combined Transformer

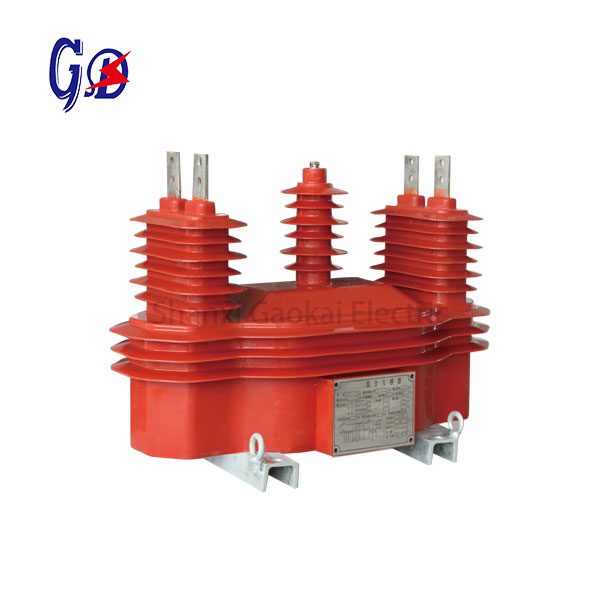

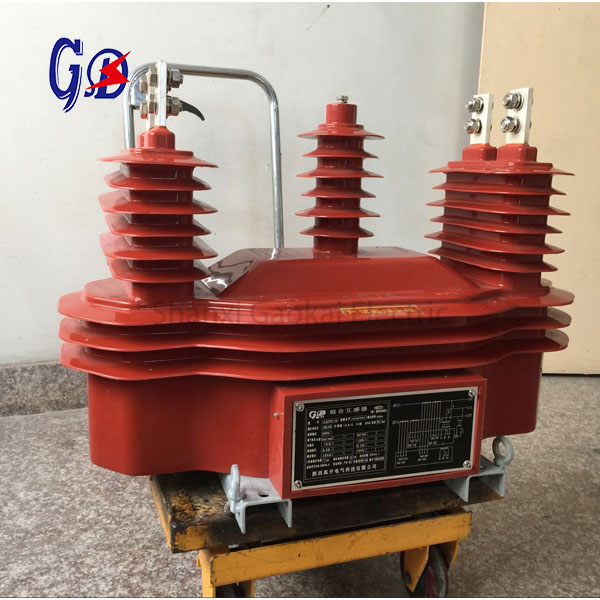

Name：10kV, 15kV High voltage Power Metering Unit
Model：JLSZVF4-10, JLSZV-10 Three phase Metering Box
Packing：Plastic bag & Wooden case or as requested
Material：Epoxy Resin & Silicone Rubber composite insulation
Delivery & Payment Terms:
Shipping time：Usually 30 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Enviroment condition
– Ambient temperature: -25°C -+40°C
– Altitude: ≤2000m
– Wind pressure: ≤700Pa(equals to wind speed 34m/s)
– Relative humidity: daily average: ≤95%; monthly average: ≤90%
– Air contamination degree: IV degree
Voltage Transformer
| Rated voltage ratio (kV) | Accuracy class combination | Accuracy class and
rated output (VA) COSФ=0.8 |
Thermal limit output (VA) | Rated Insulation level(kV) | |
| 0.2 | 0.5 | ||||
| 10/0.1 | 0.2 or 0.5 | 20 | 40 | 400 | 12/42/75kV |
Current Transformer
| Rated current ratio(A) | Accuracy class combination | Accuracy class and rated output (VA)
COSФ=0.8 |
1S short-time thermal current (kA) | Rated dynamic current | Rated Insulation level (kV) | |||
| 02S | 0.2 | 0.5S | 0.5 | |||||
| 5-300/5 | 0.2S
0.2 0.5S 0.5 |
10 | 10 | 10 | 10 | 100I1n | 250I1n | 12/42/75kV |
| 400/5 | 45 | 80 | ||||||
| 500/5 | 52 | 80 | ||||||
| 600/5 | 63 | 100 | ||||||
Note: Please email us if you need the combined transformers with other specifications.
