Product Details:
Category：Instrument Transformer

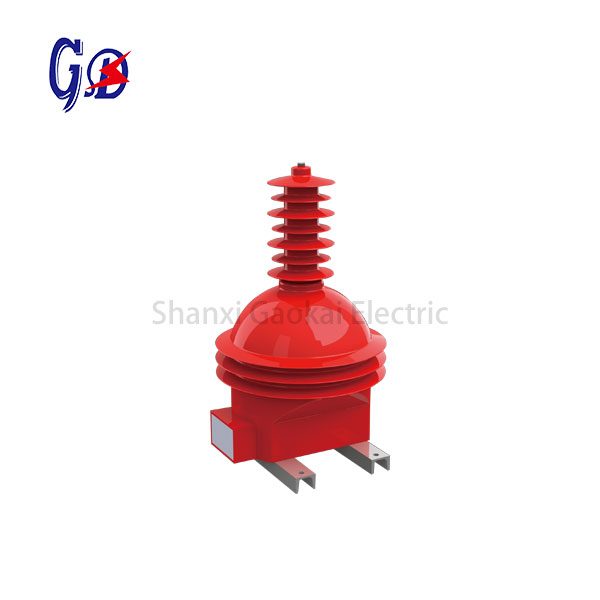

Name：36kV Outdoor Voltage Transformer, Potential Transformer
Epoxy Resin & Silicone Rubber Composite Insulation
Model：JDZXW(F)-35
Packing：Plastic bag & Wooden case or as requested
Color：Grey, Red or as customized
Standard：IEC 60044-2.2003 or IEEE
Delivery & Payment Terms:
Shipping time：Usually 30 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤2000m
| Model | Rated Voltage Ratio(KV) | Accuracy classes combination & rated secondary output (VA) | Thermal limit output (VA) | Rated insulation level (KV) | Surface creepage distance (mm) |
| JDZXW-35 | 35/√3/0.1/√3/0.1/3 | 0.2/6P(3P)—30/100
0.5/6P(3P)—90/100 1/6P(3P)—180/100 3/6P(3P)—500/100 |
600 | 40.5/95/185 | 1450 |
| 35/√3/0.1/√3/0.1/√3/0.1/√3 | 0.2/0.2/6P(3P)—15/15/100
0.2/0.5/6P(3P)—15/20/100 0.5/0.5/6P(3P)—45/45/100 |
300/300 |
Note: We can also manufacture the transformers with other specifications as the detailed request.

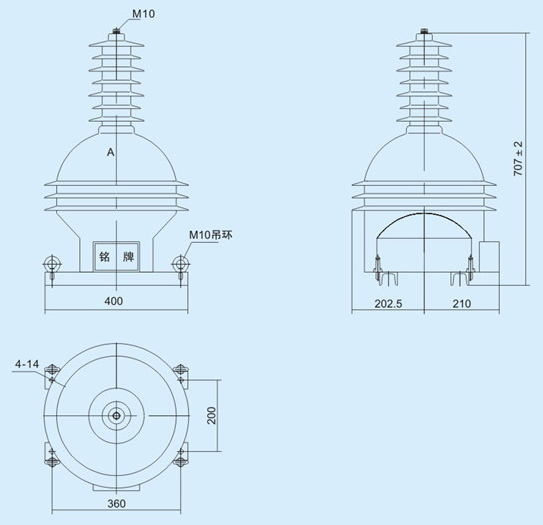

Outline Dimension
