Product Details:
Category：Instrument Transformer

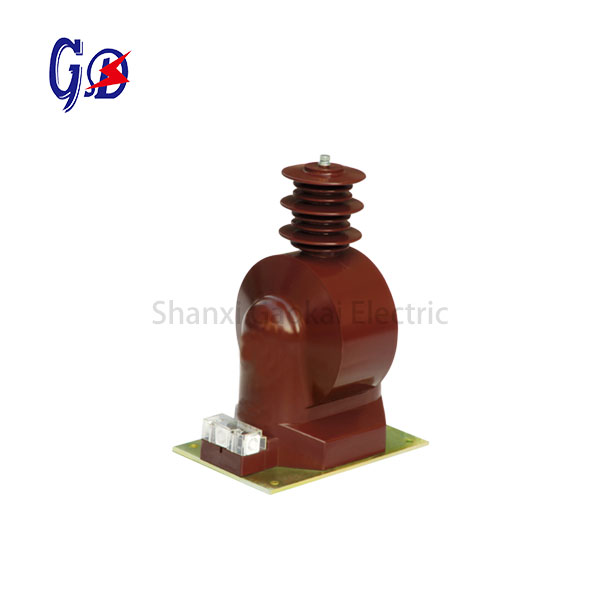

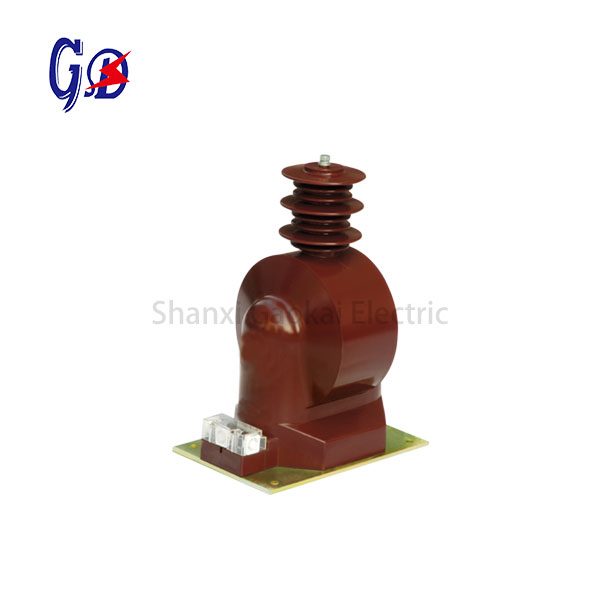

Name：36kV Voltage Transformer, Indoor Full-enclosed Post Structure
Model：JDZX9-35 Brown or Red, Single pole insulated VT
Brand：OEM or our brand GK
Coil Structure：Toroidal
Material：Epoxy Resin Casting, Cooper
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Load Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
| Model | Rated voltage ratio(kV) | Accuracy classes combination | Rated output (VA) | Thermal limit output (VA) | Rated insulation level (kV) |
| JDZX9-35 | 35000/√3/100/√3/100/3 | 0.2/6P(3P) | 30/150 | 600 | 40.5/95/200 |
| 0.5/6P(3P) | 50/150 | ||||
| 35000/√3/100/√3/100/√3/100/3 | 0.2/0.2/6P(3P) | 15/15/150 | |||
| 0.2/0.5/6P(3P) | 15/20/150 | ||||
| 0.5/0.5/6P(3P) | 20/20/150 |
Note: We can also manufacture the transformers with other specifications as the detailed request.

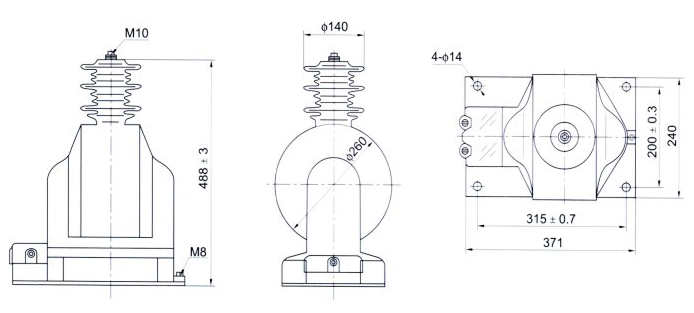

Outline Dimension
