Product Details:
Category：Instrument Transformer

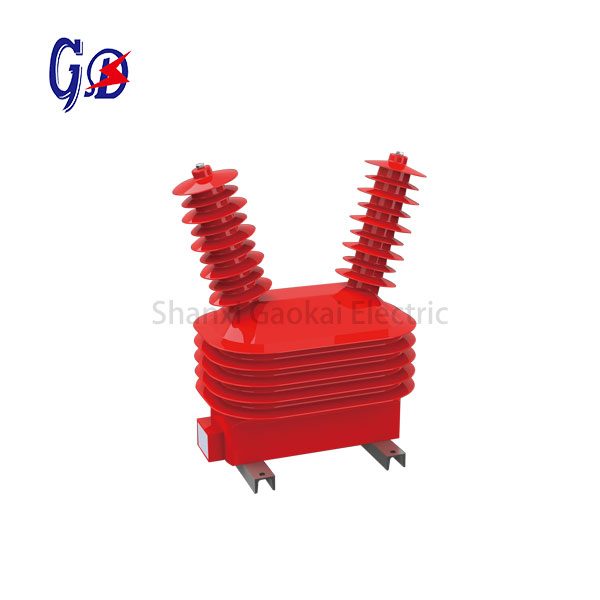

Name：36kV Outdoor Voltage Transformer, Potential Transformer
Epoxy Resin & Silicone Rubber Composite Insulation, Double Pole Insulated VT
Model：JDZW(F)-35
Packing：Plastic bag & Wooden case or as requested
Color：Grey, Red or as customized
Delivery & Payment Terms:
Shipping time：Usually 30 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Rated insulation level: 40.5/95/185kV
– Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤2000m
| Model | Rated Voltage Ratio(KV) | Accuracy classes combination & rated secondary output (VA) | Thermal limit output (VA) | Rated insulation level (KV) | Surface creepage distance (mm) |
| JDZW-35 | 35000/100 | 0.2—60
0.5—150 1—300 3—600 |
1200 | 40.5/95/200 | 1480 |
| 35000/100/100 | 0.2/0.2—30/30
0.2/0.5—30/10 0.5/0.5—60/60 |
600/600 |
Note: We can also manufacture the transformers with other specifications as the detailed request.
Outline Dimension
