Product Details:
Category：Instrument Transformer

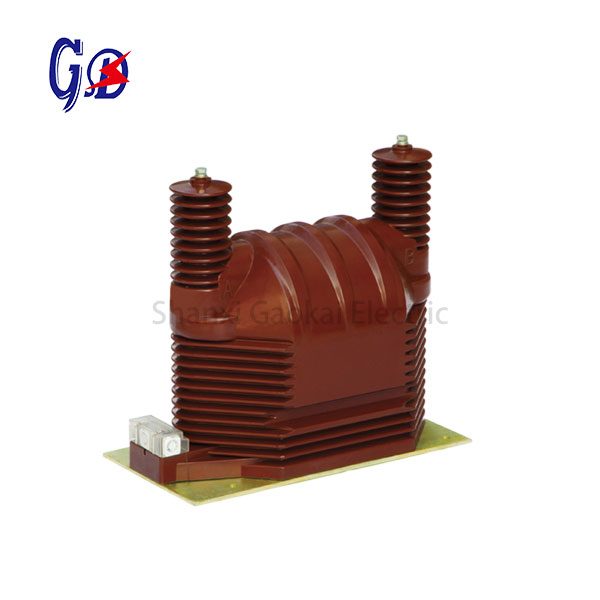

Name：27.5kV, 36kV Single phase Voltage Transformer
Model：JDZ9-27.5, 35Q, JDZX9-27.5G, 35G, Brown or Red
Brand：GK or OEM
Coil Number：One, Two or as requested
Material：Epoxy Resin Casting, Cooper
Structure:：Indoor Full-enclosed, with residual voltage winding
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Load Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤2000m
| Model | Rated voltage ratio(kV) | Accuracy classes combination | Accuracy classes and rated output (VA) | Thermal limit output (VA) | Rated insulation level (kV) | ||
| 0.2 | 0.5 | 1 | |||||
| JDZ9-35 | 35000/100 | 0.2/0.5 | 60 | 120 | 250 | 1000 | 40.5/95/185 |
| JDZF9-35 | 35000/100/100 | 0.2/0.2
0.2/0.5 |
40/40 | 80/80 | 250 | 1000 | 40.5/95/185 |
Note: We can also manufacture the transformers with other specifications as the detailed request.

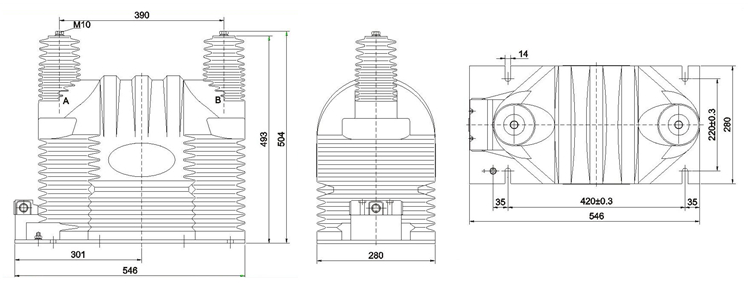

Outline Dimension
