Product Details:
Category：Instrument Transformer

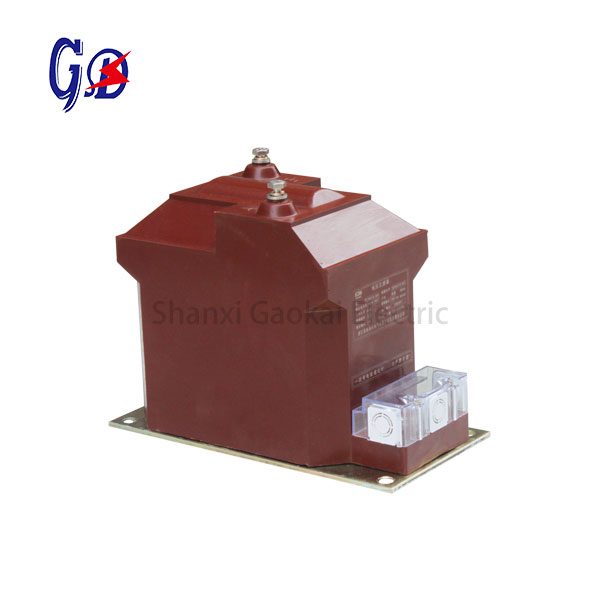

Name：12kV Single Phase Voltage Transformer, Indoor Full-enclosed Structure
Epoxy Resin & Silicone Rubber Composite Insulation
Model：JDZ10-6,10(A,B), Brown or Red
Brand：GK or OEM
Coil Number：One, Two or as requested
Material：Epoxy Resin Casting, Cooper
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤2000m
| Model | Rated transformation ratio(kV) | Accuracy classes and rated output (VA) | Thermal limit output (VA) | Rated insulation level (kV) | ||||
| 0.2 | 0.5 | 1 | 3 | 3P
6P |
||||
| JDZ10-6 | 6000/100 | 15 | 30 | 60 | 50 | 50 | 200 | 7.2/32/60 |
| JDZ10-10 | 10000/100 | 15 | 30 | 60 | 50 | 50 | 200 | 12/42/75 |
Note: We can also manufacture the transformers with other specifications as the detailed request.
Outline Dimension
