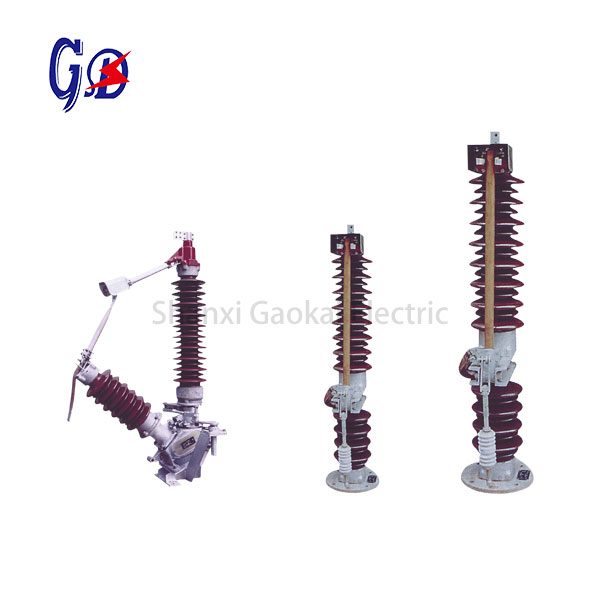

Product Details:
Category：High Voltage Disconnecting Switch
Name：Indoor Isolating switch, Disconnector, Isolator
Model：GW8(GW13)-40.5,72.5, 126
Packing：Plastic bag & Wooden case or as requested
Delivery & Payment Terms:
Shipping time： Usually 21 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment condition
– Ambient temperature: max +40°C min -25°C
– Altitude: ≤1000m
– Wind pressure: ≤700Pa (equals to wind speed 34m/s)
– Air contamination degree: Ⅲ degree
– Earthquake intensity: ≤8 degree
– No corrosive or flammable gas, no frequent violent vibration
Technical Data
| Model | GW8 | GW13 | ||||||
| 1 | Rated Voltage (kV) | 40.5 | 72.5 | 126 | 40.5 | 72.5 | 126 | |
| 2 | 1min power frequency withstand voltage (kV) | 85 | 140 | 230 | 85 | 160 | 230 | |
| 3 | Lightning impulse withstand voltage (kV) | 185 | 325 | 550 | 185 | 350 | 550 | |
| 4 | Rated Current (A) | 630 | 630, 1250, 1600 | |||||
| 5 | Rated short time withstand Current (kA/S) | 25/4 | 40/4 | |||||
| 6 | Rated peak withstand current kA) | 63 | 100 | |||||
| 7 | Rated connect machine load (N) | 750 | 750 | 1000 | 750 | 100 | 1250 | |
| 8 | Mechanical life (Times) | 2000 | 2000 | |||||
| 9 | Electromotor operation mechanism | Model | CJ2 | CJ2 | ||||
| Motor voltage (V) | AC380, DC220, DC110 | AC380, DC220, DC110 | ||||||
| Control loop voltage (V) | AC220, AC380, DC220, DC110 | AC220, AC380, DC220, DC110 | ||||||
| Switching time (s) | 7±1 | 7±1 | ||||||
| Output corner | 180° | 180° | ||||||
| 10 | Manual operation mechanism | Model | CS14G | CS14G | ||||
| Control loop voltage (V) | AC220 | AC220 | ||||||
Outline Dimension
1. Terminal block 2. Rain cover 3. Touch guide base 4. Moving contact conducting rod
5. Upper insulating Pillar 6. Bracket 7. Lower insulating Pillar 8. Chassis
