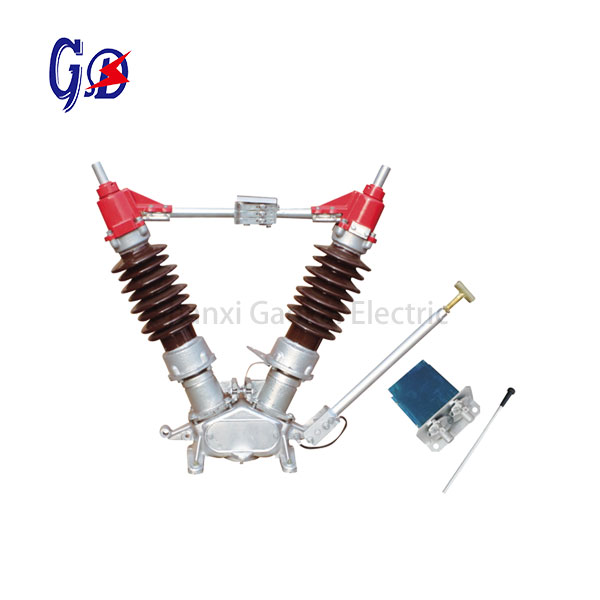

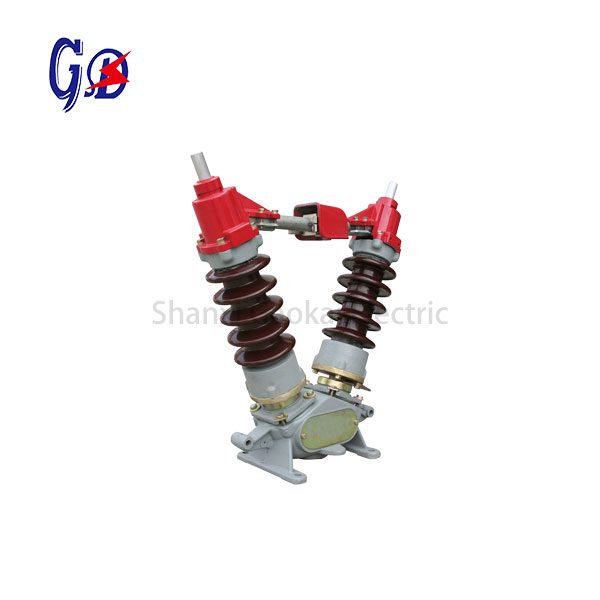

Product Details:
Category：High Voltage Disconnecting Switch
Name：Indoor Isolating switch, Disconnector, Isolator
Model：GW5-40.5,126,252
Packing：Plastic bag & Wooden case or as requested
Delivery & Payment Terms:
Shipping time： Usually 21 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment condition
– Ambient temperature: max +40°C min -25°C
– Altitude: ≤1000m
– Wind pressure: ≤700Pa (equals to wind speed 34m/s)
– Air contamination degree: IV degree
– Earthquake intensity: ≤8 degree
– No corrosive or flammable gas, no frequent violent vibration
Technical Data
| 1 | Rated Voltage (kV) | 40.5 | 126 | 252 | ||||||||
| 2 | 1min power frequency withstand voltage (Effective value) kV | To Ground | 95 | 230 | 460 | |||||||
| Between Fracture | 115 | 245 | 460+145 | |||||||||
| 3 | Lightning Impulse withstand voltage (Peak value) kV | To Ground | 185 | 550 | 1050 | |||||||
| Between Fracture | 215 | 630 | 1050+200 | |||||||||
| 4 | Mechanical life (Times) | 2000 | ||||||||||
| 5 | Rated Current (A) | 630 | 1250 | 1600 | 2000 | |||||||
| 6 | Rated short time withstand Current (kA) | 20 | 31.5 | 40 | 40 | |||||||
| 7 | Rated withstand current (Peak value) kA | 50 | 80 | 100 | 100 | |||||||
| 8 | Rated connect machine load (N) | Horizontal vertical | 750 | 1000 | ||||||||
| Horizontal transverse | 500 | 750 | ||||||||||
| Vertical force | 750 | 1000 | ||||||||||
| 9 | Creepage distance (mm) | 1013-2256 | 1813-2250 | 3150-3906 | ||||||||
| 10 | Manual operating mechanism | Model | CS17, CS17G | |||||||||
| Control loop voltage (V) | AC220, DC110, DC220 | |||||||||||
| 11 | Motor operating mechanism | Model | CJ6 | |||||||||
| Motor voltage (V) | AC220, AC380, DC220 | |||||||||||
| Control loop voltage (V) | AC220, AC380, DC220 | |||||||||||
| Switching time (s) | 6±1 | |||||||||||
Outline Dimension

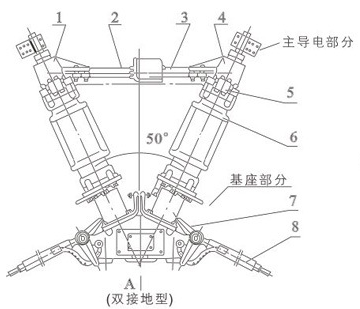

1. Connector base 2. Main contact 3. Main touch finger 4. Connector base
5. Contact touch finger 6. Post insulator 7. Limit plate 8. Earthing knife
