Product Details:
Category：High Voltage Disconnecting Switch

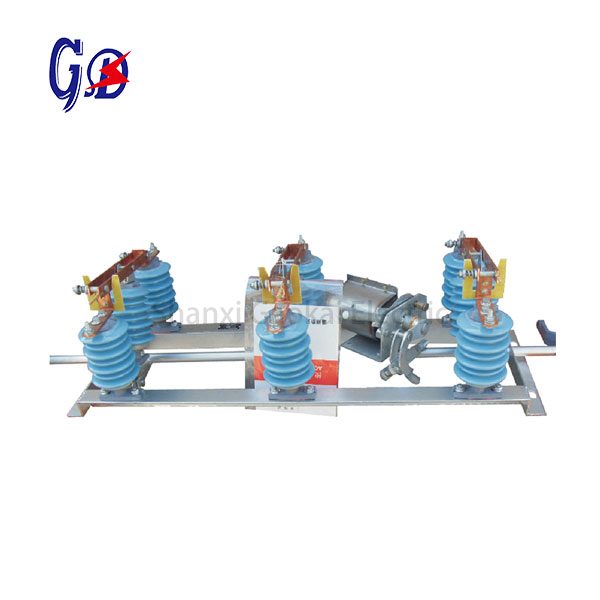

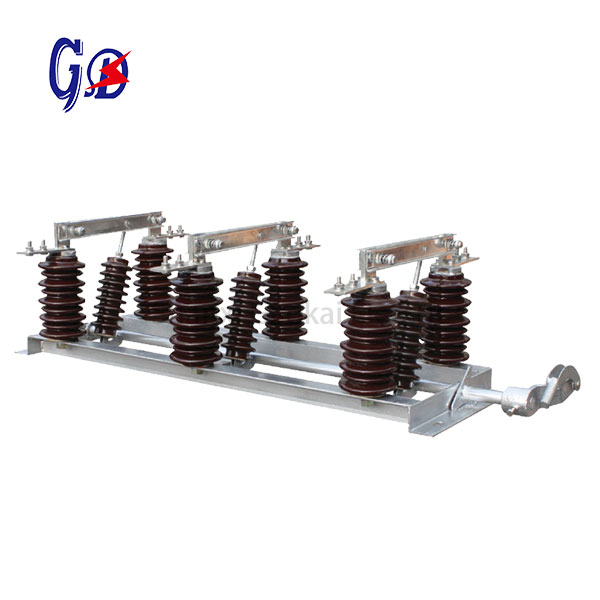

Name：Indoor Isolating switch, Disconnector, Isolator
Model：GW15
Packing：Plastic bag & Wooden case or as requested
Delivery & Payment Terms:
Shipping time： Usually 21 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment condition
– Ambient temperature: max +40°C min -40°C
– Altitude: ≤2000m
– Wind pressure: ≤700Pa (equals to wind speed 34m/s)
– Air contamination degree: Ⅲ degree
– Earthquake intensity: ≤8 degree
– No corrosive or flammable gas, no frequent violent vibration
Technical Data
| Type | Rated voltage (kV) | Rated current (A) | 4s rated sort time withstand Current (kA) | 1min power frequency withstand voltage (kV) | Lighting impulse withstand voltage (kV) |
| GW15-12/630 | 12 | 630 | 20 | 42 | 75 |
| GW15-12/1000 | 12 | 1000 | 25 | 42 | 75 |
