Product Details:
Category：Composite Insulator

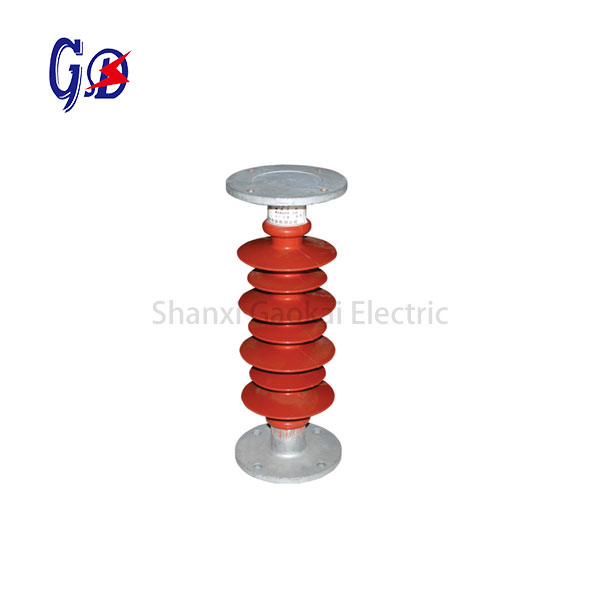

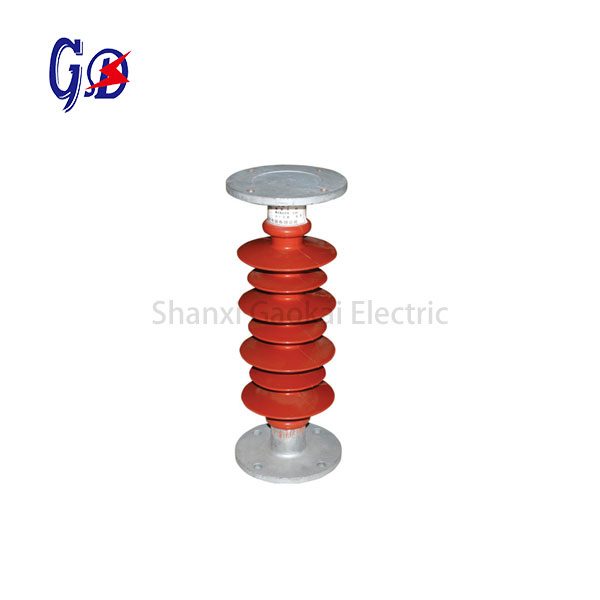

Name：Post insulator, Polymeric insulator
Model：FZSW series
Packing：Foam & Carton or as requested
Color：Grey, Red or as customized
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Description
FZSW series of Composite polymeric suspension insulator is made of an insulating core, fiberglass reinforced epoxy resin rod, once-molding by a housing (HTV Silicone Rubber) and hot dip galvanized cast steel for metal fittings.
Connection of the fiberglass rod and metal fittings, have the full automatic sound wave detection of defects system. The product conforms to IEC / ANSI / GB standard.
Specification

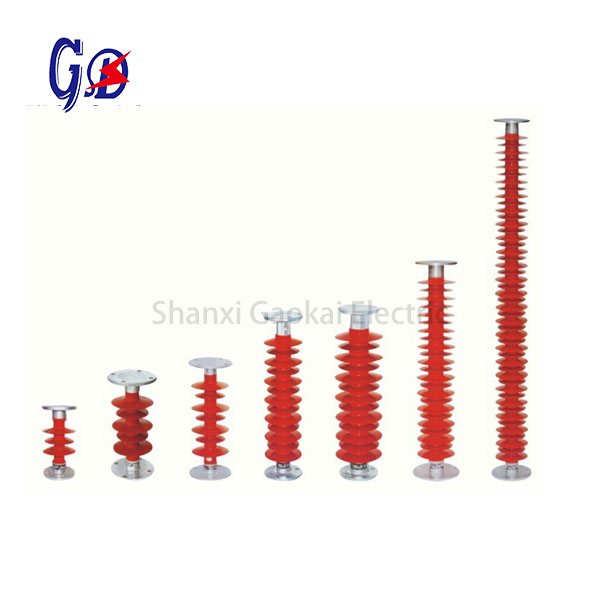

| Model | Rated voltage (kV) | Rated mechanical load (KN) | Structure height (mm) | Insulating distance (mm) | Min nominal creepage distance (mm) | Lightning full wave impulse withstand voltage (kV) | 1min power frequency wet withstand voltage (kV) |
| FZSW-10/4 | 10 | 4 | 215±10 | 125 | 290 | 75 | 42 |
| FZSW-24/8 | 24 | 8 | 340±10 | 320 | 750 | 150 | 65 |
| FZSW-35/6 | 35 | 6 | 450±10 | 360 | 1050 | 230 | 95 |
| FZSW-66/6 | 66 | 6 | 760±10 | 630 | 1886 | 410 | 185 |
| FZSW-66/8 | 66 | 8 | 770±10 | 670 | 2010 | 410 | 185 |
| FZSW-110/10 | 110 | 10 | 1200±10 | 1085 | 2900 | 500 | 230 |
| FZSW-220/10 | 220 | 10 | 2400±10 | 2070 | 7060 | 1000 | 395 |
Note: We can manufacture the composite insulators with the supplied specifications as the customers’ request.
