Product Details:

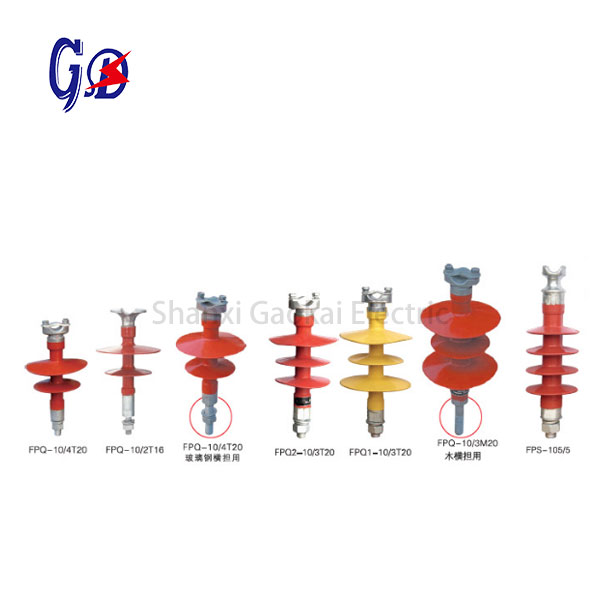

Category：Composite Insulator
Name：Pin insulator, Polymeric pin insulator
Model：FPQ series
Packing：Foam & Carton or as requested
Color：Grey, Red or as customized
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Description

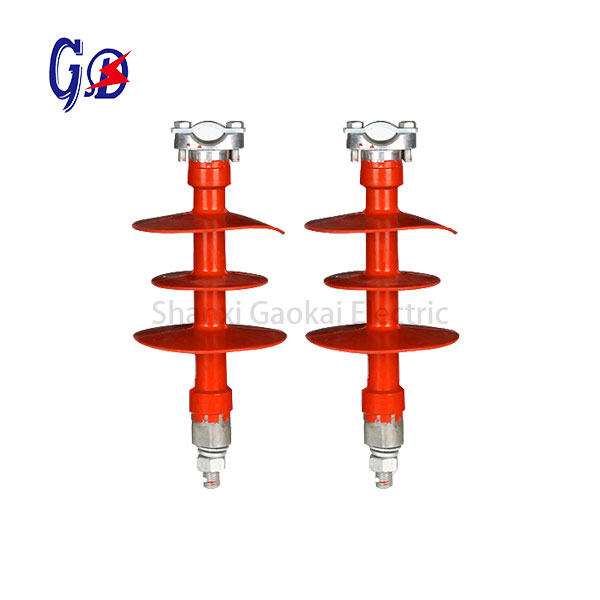

FPQ series of Composite pin insulator consists of an insulating core, fiberglass reinforced epoxy resin rod, once-molding by a housing (HTV Silicone Rubber). It’s mounted rigidly on a supporting structure by means of a pin passing up inside the housing which is molded or casted by circumferential crimping process.
Specification
| Model | Rated Voltage(kV) | Rated Mechanical Load (KN) |
Straight Height (mm) | Min. arc distance (mm) | Min. nominal creepage distance(mm) | Lightning impulse withstand voltage(peak)(kV) | 1min power frequency withstand voltage(wet)(kV) |
| FPQ-10/4T20 | 10 | 4 | 215 | 125 | 280 | 75 | 42 |
| FPQ-10/2.5 | 10 | 2.5 | 250 | 180 | 380 | 75 | 45 |
| FPQ-10/5T20 | 10 | 5 | 250 | 165 | 370 | 105 | 42 |
| FPQ-24/8 | 24 | 8 | 320 | 255 | 715 | 150 | 75 |
| FPQ-33/5 | 33 | 5 | 430 | 320 | 1050 | 230 | 95 |
| FPQ-33/12.5 | 33 | 12.5 | 520 | 480 | 1330 | 260 | 130 |
| FPQ-36/8 | 36 | 8 | 560 | 460 | 1160 | 130 | 95 |
Note: Usually we supply the composite pin insulator ranges from 10kV to 36kV, please just send us the specifications if you need higher voltage composite pin insulators.
