The expulsion Fuse Cutouts are outdoor high voltage device, providing reliable circuit protection in Aerial distribution systems for voltages ranging from 10kV to 36kV. It is designed to be installed outdoors for vertical cross arm or pole mounting. The expulsion fuse cutouts have Porcelain and Silicone rubber insulators.

The Fuse Cutout is connected with the incoming feeder of the distribution transformer or distribution lines. It’s mainly used to protect transformers or lines from short circuit and overload and ON/OFF loading current.

The Drop Out Fuse unit is composed of insulator support and a fusion tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fusion tube. The inside of the fusion tube is the arc-extinguishing tube, the outside is made of phenolic compound paper tube or epoxy glass.

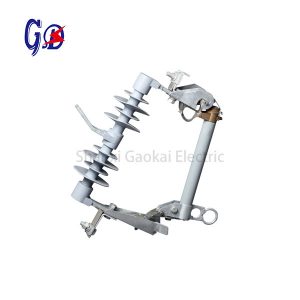

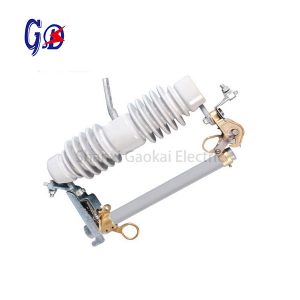

10-15KV Fuse Cutout, High voltage Fuse, Thermal Expulsion Fuse

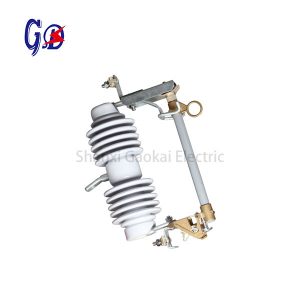

24-27KV Fuse Cutout, High voltage Fuse, Thermal Expulsion Fuse

33-36KV Fuse Cutout, High voltage Fuse, Thermal Expulsion Fuse

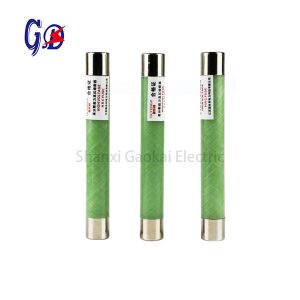

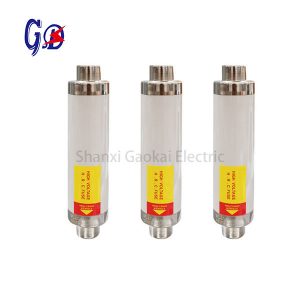

Current Limit Fuse

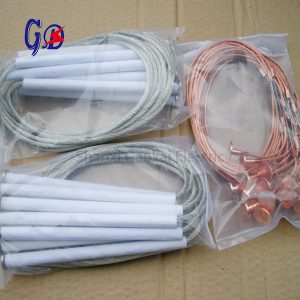

Fuse wire
